Specifications


Connectivity
  • WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
  • Data: Connects to our server every minute
  • Or connect to your own data sources
Display
  • LED Count: 512
  • LED Type: 3528 Surface Mount
  • LED Size: 3.5mm x 2.8mm
  • LED Colour: RGB (Red, Green, Blue)
  • Brightness control: 16 Level
Power
  • 500mA @ 5V
  • Included: 1.8M USB Cable
Circuit Board
  • Material: 1.6mm FR-4

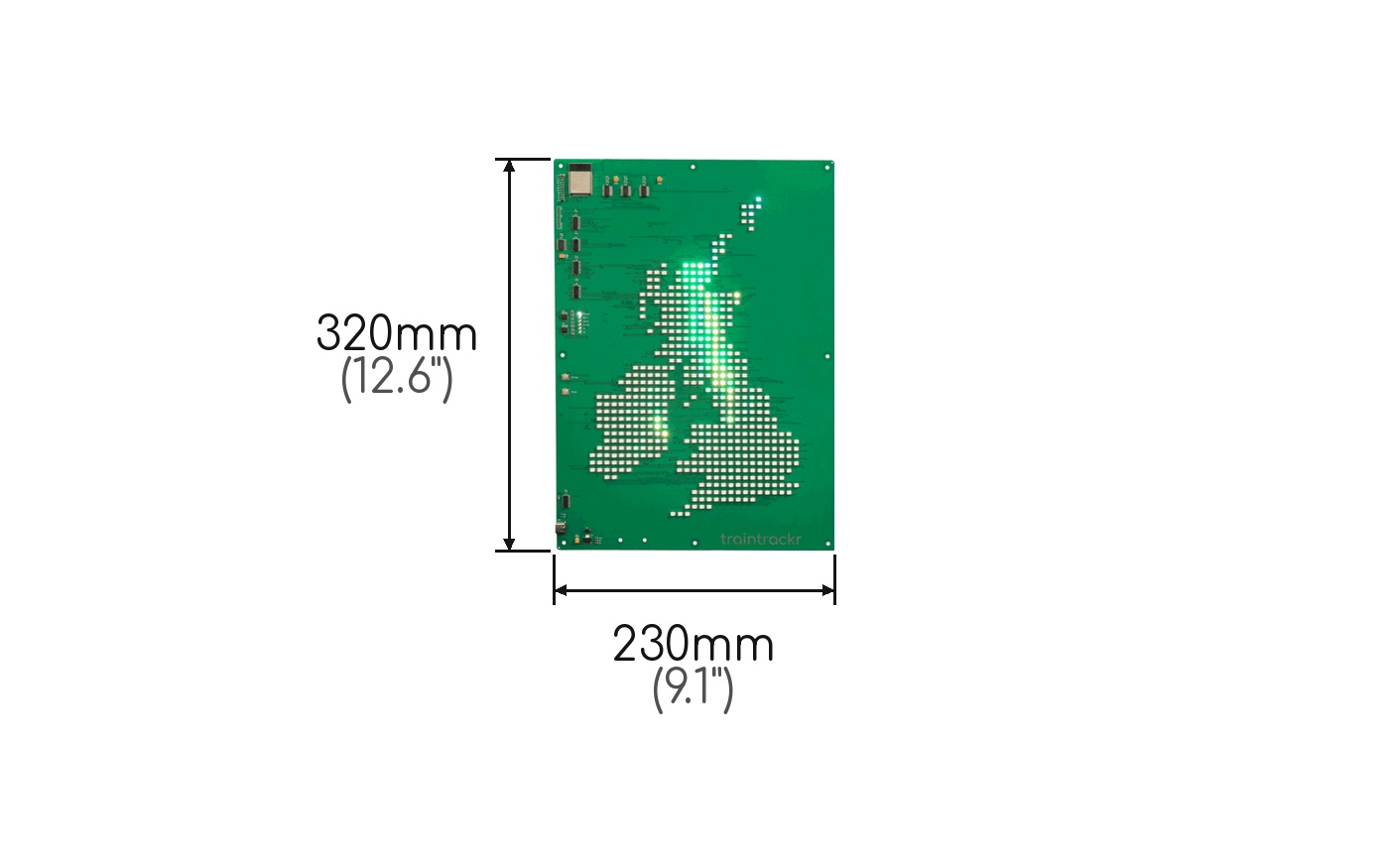

  • Size: 230mm x 320mm (9.1in x 12.6in)
  • Colour: Green
Main Components
  • Microcontroller: ESP32
  • LED Driver: ICN2038/ICN2012
Stand
  • Material: 6mm MDF
  • Laser cut ready to assemble

What's in the Box?


Package Contains
  • Live Tracker
  • Wooden Stand
  • USB Cable
  • Setup Instructions

Note: You will need to plug this into a USB phone charger or computer USB port for power.


Shipping and Warranty


Shipping
  • Ships to the UK and Europe
  • Tracking code supplied once dispatched
Warranty
  • Standard 1 Year

Maker Friendly


Firmware
  • Flash the chip via FTDI Pins
  • Program using Arduino IDE or similar
  • Reprogrammable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.


My wife gave me the London Underground (Large) traintrackr for my 40th birthday today and it is literally the coolest gift I have ever received.

Joel H, Email

Reviews


Brilliant - Stuart

9th of April 2024 (Review for: uk-map6)
A bit of weather geek do this perfect addition to my living

So well made too
Excellent! - Matthew

25th of September 2024 (Review for: uk-map6)
Just received the Colour maps board and it looks so much better in person than i was expecting!
it really adds to my living room, and i look forward to watching it doing its little animations each evening, thank you!
