Sweden Map Trackr
Geographic Map

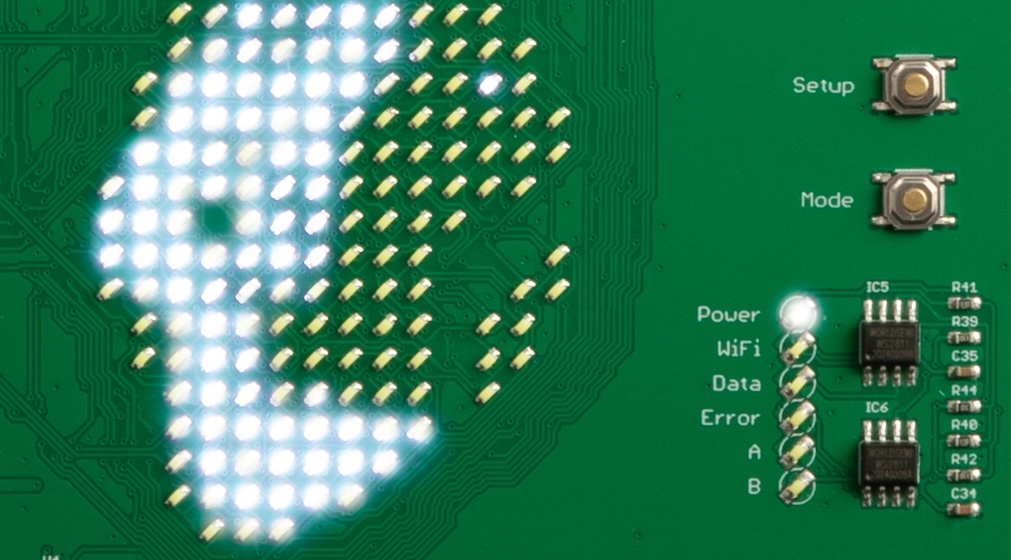

Tracks weather conditions (rain and snow, snow) in Sweden, displayed on individually dimmable LEDs.
We continually process live weather images on our servers, so you can see what's really happening out there.
Display the most recent conditions, or enable animations to show the evolution of the weather.
£129
£116.10
Ships from the UK
No UK Import Duty
NEW EU Orders
Include Import VAT
More Information
Ships to the UK
and Europe
Switch to US
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 512
- LED Type: 0603 Surface Mount
- LED Size: 1.6mm x 0.8mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 105mm x 190mm (4.1in x 7.5in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the UK and Europe
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
I just got the coolest, transitgeekiest thing ever. #mbta @TrackrTrain
